Oil Impregnated Bronze Bearing, commercial, inch, plain

Oil Impregnated Bronze Bearing, commercial, inch, plain

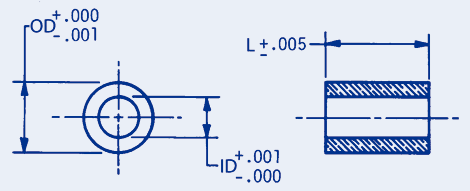

  • SHS= Shaft Size
  • ID = Inside Diameter
  • OD = Outside Diameter
  • L = Length
Material: Bronze
Part Shaft Size Inside Diameter Outside Diameter Length
Buy View
AGB-A1-1 1/8 .126 .252 .125
AGB-A1-2 1/8 .126 .252 .250
AGB-A1-3 1/8 .126 .252 .375
AGB-A1-4 3/16 .188 .314 .250
AGB-A1-5 3/16 .188 .314 .375
AGB-A1-6 3/16 .188 .314 .500
AGB-A1-7 3/16 .188 .314 .625
AGB-A1-8 1/4 .251 .377 .250
AGB-A1-9 1/4 .251 .377 .375
AGB-A1-10 1/4 .251 .377 .500
AGB-A1-11 1/4 .251 .377 .625
AGB-A1-12 5/16 .313 .439 .250
AGB-A1-13 5/16 .313 .439 .375
AGB-A1-14 5/16 .313 .439 .500
AGB-A1-15 5/16 .313 .439 .625
AGB-A1-16 3/8 .376 .502 .250
AGB-A1-17 3/8 .376 .502 .375
AGB-A1-18 3/8 .376 .502 .500
AGB-A1-19 3/8 .376 .502 .625
AGB-A1-20 3/8 .376 .502 .750
AGB-A1-21 1/2 .501 .627 .375
AGB-A1-22 1/2 .501 .627 .500
AGB-A1-23 1/2 .501 .627 .625
AGB-A1-24 1/2 .501 .627 .750
AGB-A1-25 1/2 .501 .627 1.000
