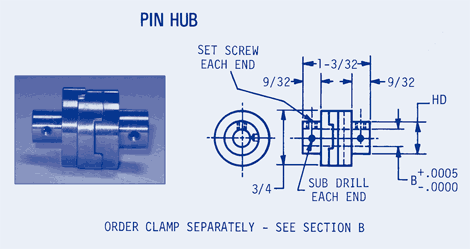

Oldham Coupling Pin Hub (100 oz-in)

Oldham Coupling Pin Hub (100 oz-in)
  • M= Material
  • B1 = Bore 1
  • B2 = Bore 2
  • H1 = Hub Diameter 1
  • H2 = Hub Diameter 2
100 oz.-in. torque, shaft to shaft misalignment .010, angular misalignment 1 degree. Maxiumum backlahs 8'. maximum RPM 2,500.
Part Material Bore 1 Bore 2 Hub Diameter 1 Hub Diameter 2
Buy View 303 Stainless Steel
CAS-A1-1 303 Stainless Steel .1200 .1200 .312 .312
CAS-A1-2 303 Stainless Steel .1200 .1248 .312 .312
CAS-A1-3 303 Stainless Steel .1200 .1873 .312 .375
CAS-A1-4 303 Stainless Steel .1200 .2498 .312 .500
CAS-A1-5 303 Stainless Steel .1248 .1248 .312 .312
CAS-A1-6 303 Stainless Steel .1248 .1873 .312 .375
CAS-A1-7 303 Stainless Steel .1248 .2498 .312 .500
CAS-A1-8 303 Stainless Steel .1873 .1873 .375 .375
CAS-A1-9 303 Stainless Steel .1873 .2498 .375 .500
CAS-A1-10 303 Stainless Steel .2498 .2498 .500 .500
